M500
先進的工業級/車載 4G LTE 多合一無線通訊路由器
Billion M500 是一款先進的4G/LTE工業等級E-Mark (R10、R118)/車載多合一無線通訊路由器。具備雙SIM卡和GbE WAN模組，可以同時做到雙連線模式 (例如：兩張SIM卡同時連線或是一張SIM卡和GbE WAN模組同時連線)，還具備WIFI 802.11n無線熱點通訊設備，提供高可用性、高可靠性和高安全性的4G/LTE無線連接，適用於各類型之應用。堅固耐用的設計：雙SIM卡、4-port Gigabit switch、Wi-Fi存取點、嵌入式GPS或GNSS元件，用於即時定位追蹤，以及車載應用Ignition Sensing，將車充線連接在點菸器上， 允許當車輛熄火之後10秒內關閉路由器，以及USB 2.0 x2和mini USB x2。
概覽
專為挑戰性/堅固的部署而設計
- Billion M500的金屬機殼，在穩固性的要求下提供最大彈性的拆換組裝可能性，並且通過MIL-STD-810G 514.6, 516.6 美國軍方標準測試。Billion M500的主動監控設備溫度機制能擴大系統可工作溫度(-40°~70°C)，M500也提供適應大範圍工作電壓(DC 10V~56V)的電路設計，足以滿足各種嚴苛的操作環境需求。
彈性的網路連線
- Billion M500的雙LTE模組的架構設計可依照不同方案需求提供「頻寬擴展性-負載平衡」或「可靠性連結-自動故障轉移與回復」，實時提供穩定可靠的連線品質。Billion M500同時內建GNSS功能，中控中心可據此追蹤遠端系統座標進而定位。
高性能、可靠性、易於管理
- 搭配 BECentral® 更可於中控中心內即時監控M500系統本身運行狀況。Billion M500整體設計的優勢足以滿足彈性、靈活、可靠與穩定的嚴格要求，此外提供多種VPN連線通道保障通訊資料安全性，以及內建衛星導航系統（GNSS）可追蹤遠端系統定位，讓Billion M500足以勝任遠端監控系統的通訊任務，確保資料即時無誤的傳達至中央控制中心。
規格 Specification
■ Availability and Resilience
• Dual SIMs/ Dual Modules
• Dual-WAN Interfaces (LTE, GbE WAN)
◼ Embedded 4G/LTE*1
• Embedded high performance 4G LTE module
• Supported frequency bands:
LTE-FDD: B1, B3, B5, B7, B8, B20, B28
LTE-TDD: B38, B40, B41
WCDMA: B1, B3, B5, B8
• Supported data rate:
LTE-FDD: Max 300Mbps/ 50Mbps (DL/UL)
LTE-TDD: Max 226Mbps/ 28Mbps (UL/UL)
WCDMA: Max. 384 kbps/ 384 kbps (DL/UL)
• LTE Downlink MIMO support
■ Network Protocols and Features
• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack*2
• Dual APN*2
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2,
OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay
■ Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack,
Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering,URL Filtering
• VPN Pass-through
■ Virtual Private Network (VPN)
• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN
■ Wireless LAN
• Compliant with IEEE 802.11n standard
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) for easy setup
• 64/128 bits WEP supported for encryption
• Wireless security with WPA-PSK, WPA2-PSK,
Mixed WPA/WAP2-PSK
• AP and WDS Operational Modes
• Multiple SSID (4 SSIDs), BSSID
• Wireless MAC Filtering
• Wi-Fi Client Isolation
• Wi-Fi Hotspot with Captive Portal
• Support RADIUS authentication
• Wi-Fi client rate-limiting
◼Global Navigation Satellite System(GNSS)*3
• Embedded multi-GNSS engine for GPS or
GLONASS system
■ USB Application Server
• Storage: FTP server and Samba server
■ Management
• Password protection for system management • Web-based GUI for remote and local
management
• Firmware upgrade and configuration data
upload and download via web-based GUI
• CWMP(TR-069)*2, SNMP
• 4G LTE Usage Allowance
• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool
■ Hardware Specifications
Physical Interface
• WAN: 4G LTE
Optional: Single Module/SIM
Dual Modules/SIMs
• Ethernet LAN: four(4) port
10/100/1000Mbps
auto-crossover (MDI/ MDI-X) switch
• USB 2.0 Host: two(2) ports
• Mini USB Console: two(2) ports
• Reset Button
• Wireless On/Off and WPS Push Button
• Power Connector: 4-pin connector with
ignition sensing
• LED Indicators
• Antenna:
• 4G LTE:
four(4) detachable antennas(dual modules)
two(2) detachable antennas(single module)
• GPS: one(1) detachable active antenna
(option)
• Wireless: two(2) detachable antennas
■ Power Specifications
• Input: DC 10V~56V
■ Physical Specifications
• Dimensions: 199.2 x 46.6 x 132.7 mm
(199.2 x 46.6 x 149.1 mm - antenna
connector protrusion included)
• Weight: 1.1 kg
■ Operating Requirements
• Operating: -40°C to 70°C (-40°F to 158°F)
• Humidity: 20 ~ 95% non-condensing
*本產品規格內容如有變更，恕不另行通知

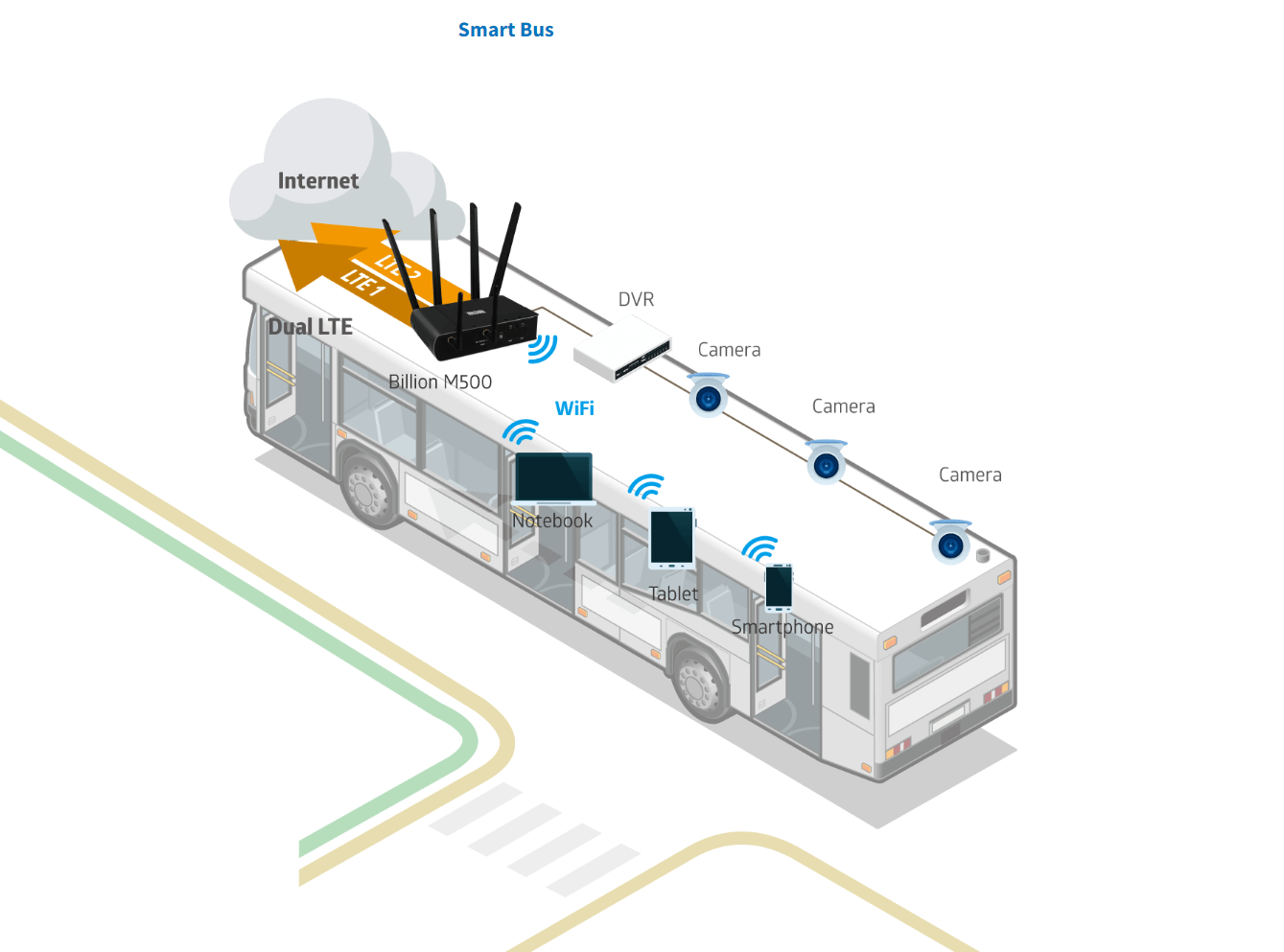

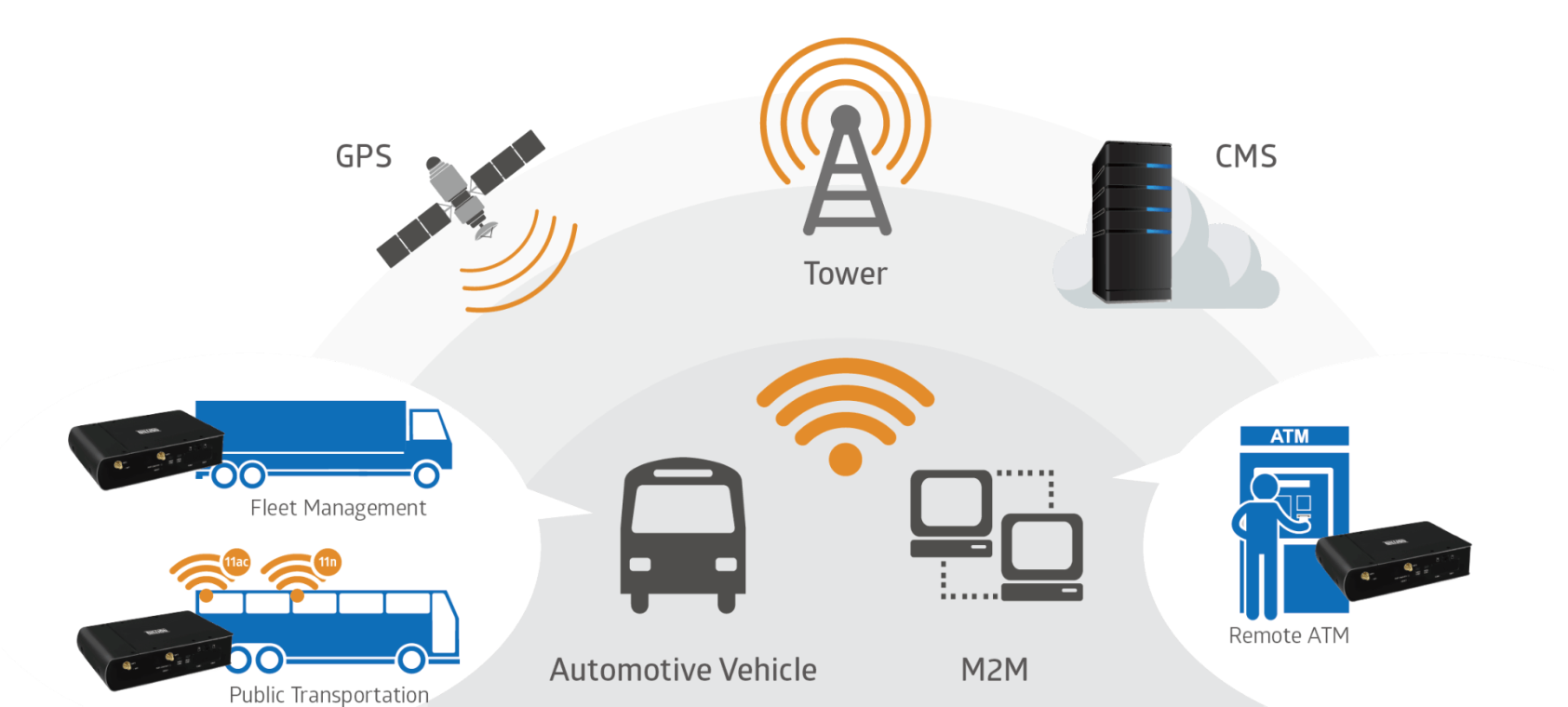

應用
行動寬頻系統覆蓋率 (紅色範圍內)
