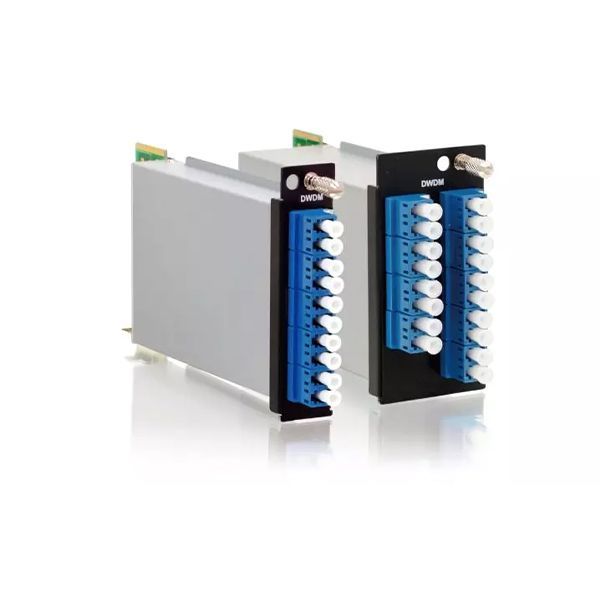

FRM220-DWMD
．Low Optical Insertion Loss
．High channel isolation
．Low PDL
．Good channel-to-channel uniformity
．Exceptional reliability and stability
．Reliable passive WDM optical technology
．Scales easily for ring networks
．Compliance with RoHS

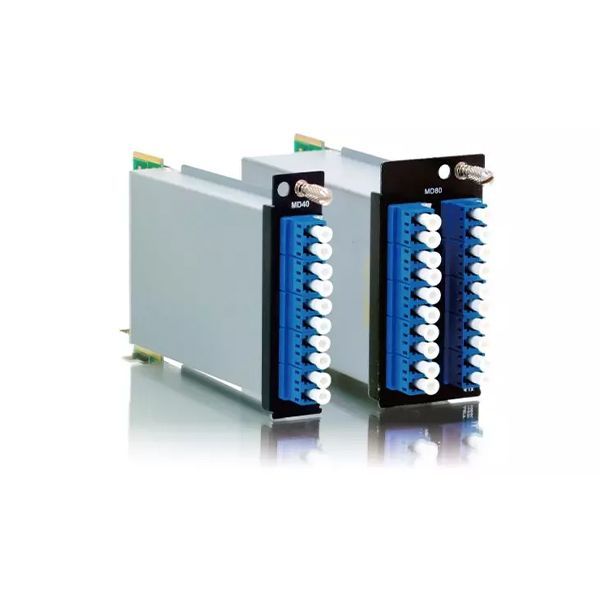

FRM220-CWMD
▪ Full native mode performance
▪ Passive model requires no power
▪ Protocol transparent, no limitation
▪ Utilizes industry standard ITU CWDM wavelength
▪ Standard LC connectors
Specifications
▪ Passive device that can be installed in a powered chassis for
managed applications
▪ Integration with Transponder in FRM220 chassis for CWDM
application

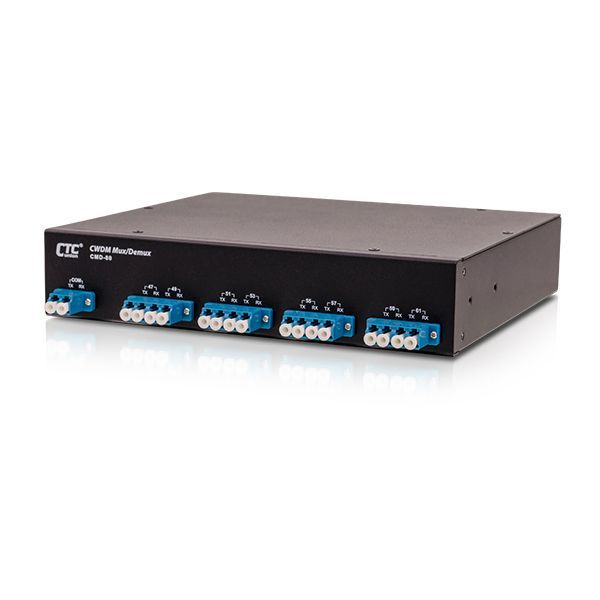

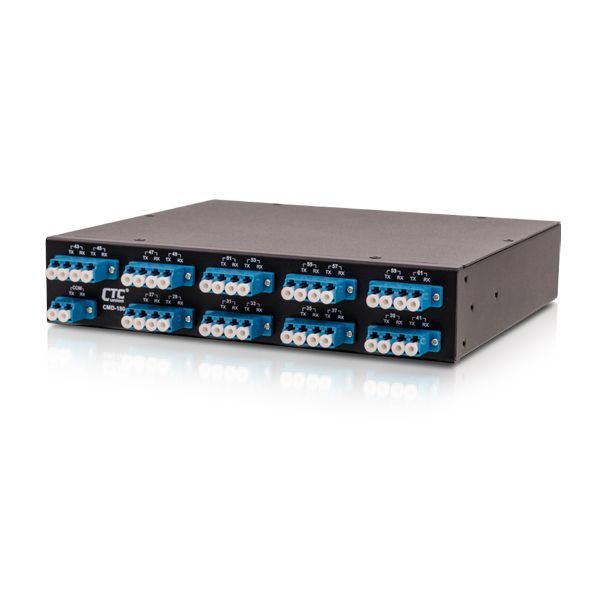

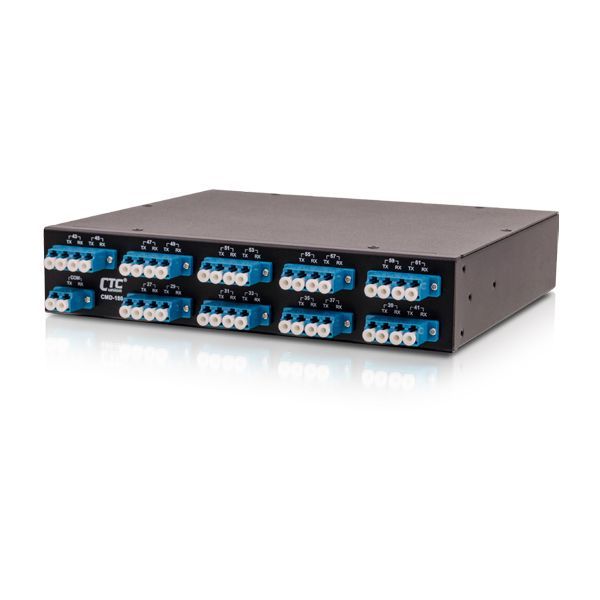

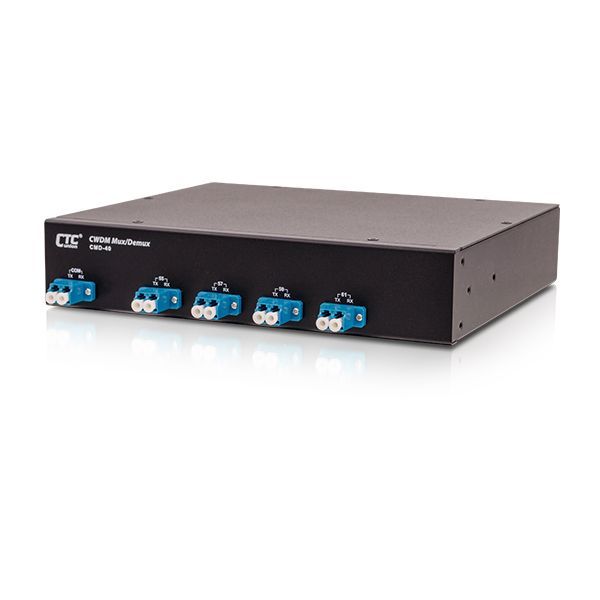

CWDM Mux /Demux
▪ Full native mode performance
▪ Standard LC/UPC connectors
▪ Passive model requires no power
▪ Protocol transparent, no limitation
▪ Utilizes industry standard ITU-T CWDM wavelength
▪ Integration with Transponder for CWDM application

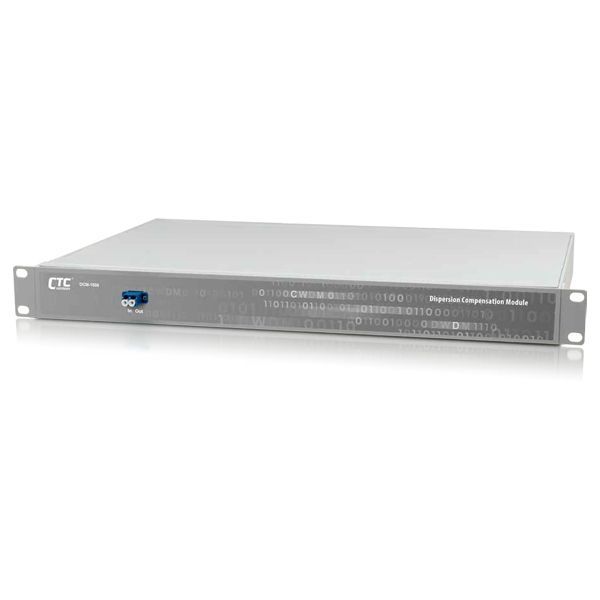

DCM-1000
▪ DWDM system dispersion compensation and Broadband low residual dispersion
▪ G.652 fiber C-Band 100% slope compensation
▪ Low insertion loss
▪ Low polarization model dispersion
▪ Conform to Telcordia GR-2854-CORE standard
▪ Reliability tested by Telcordia GR-1221-CORE standard
