JetNet 5208GP

工業級網管型PoE交換機

概覽

  • 8 個10/100/1000 Base TX 端口(JetNet5208GP) 或6個10/100/1000 Base TX端口+ 2個千兆SFP/SC/ST 端口(JetNet5208GP-2F系列)
  • SFP端口支持數字診斷監控(DDM)
  • 符合IEEE 802.3af/at/bt，每個端口可達90W 高功率PoE
  • PoE總功率預算180W，靈活設置PoE端口
  • 網絡冗餘– MSR (Multiple Super Ring), ITU-T G.8032 ERPS V1/V2, RSTP, MSTP
  • 全面的網管功能– SNMP v1/v2c/v3, RMON, Web UI, Telnet and Local Console
  • 友好的設備和網絡拓撲恢復工具– Korenix View, Korenix NMS
  • 二層網絡性能– IEEE802.1Q VLAN, Private VLAN, Trunk, Packet Filtering, DHCP Server/Client, Traffic Prioritize, Rate Control
  • 通過端口安全、訪問IP列表、 SSH、HTTPS 登陸和TACACS+創建高級安全系統
  • 通過郵件、SNMP trap 和SysLog進行事件通知
  • IEEE 802.1AB LLDP 和可選的Korenix NMS 軟件，用於自動拓撲和組管理
  • 用於網絡管理的Cisco-Like CLI, Web, SNMP/RMON
  • 多事件繼電器輸出，增強設備警報控制
  • 端口和電源的高壓隔離保護
  • 符合鐵路軌旁EN50121-4 認證
  • 雙48VDC電源輸入
  • 寬工作溫度：-40~75°C

規格 Specification

Technoligy

IEEE Standards

IEEE 802.3 10 Base-T Ethernet

IEEE 802.3u 100 Base-TX Fast Ethernet

IEEE 802.3u 100 Base-FX Fast Ethernet Fiber

IEEE 802.3ab 1000 Base-T

IEEE 802.3z Gigabit Fiber

IEEE 802.3x Flow Control and Back-pressure

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.1p Class of Service (CoS)

IEEE 802.1 Q VLAN and GVRP

IEEE 802.1 QinQ

IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.1x Port Based Network Access Protocol

IEEE 802.3af/at/bt Power over Ethernet

Performance

Switch Technology Store and Forward Technology with 16 Gbps Switch Fabric
System Throughput 29.7Mega packet per second
CPU performance MIPS-4KEc CPU running at 500 MHz
System Memory 32M Bytes flash ROM, 256M Bytes DDR3 SDRAM
Transfer packet size 64 bytes to 10K bytes Jumbo Frame
MAC Address 8K MAC address table
Packet Buffer 4.1Mbit SRAM packet memory
Forwarding performance 14,880 pps for Ethernet and 148,800 pps for Fast Ethernet, 1488,100 pps for Gigabit Ethernet

Interface

Enclosure Port

•10/100/1000 Mbps Ethernet port:

–8 x RJ-45 (JetNet5208GP)

–6 x RJ-45 (JetNet5208GP-2F Series)

•100Mbps / 1000Mbps Fiber port :

–2 x SFP Socket (JetNet5208G-2F Series)



SFP fiber transceiver with Hot-swappable and D.D.M. functions

•RS-232Console port : 1 x RJ-45 for system configuration

•Digital Input / Relay Output port: 4-Pin removable terminal block connector

•Power input port: 4-Pin removable terminal block connector


Ethernet Cable

100 Base-TX: 2-pair UTP/STP Cat. 6 cable, EIA/TIA-568B 100-ohm (100m)

1000 Base-TX: 4-pair UTP/STP Cat. 6 cable, EIA/TIA-568B 100-ohm (100m)

Digital Input

•10/100/1000 Mbps Ethernet port:

–8 x RJ-45 (JetNet5208GP)

–6 x RJ-45 (JetNet5208GP-2F Series)

•100Mbps / 1000Mbps Fiber port :

–2 x SFP Socket (JetNet5208G-2F Series)



SFP fiber transceiver with Hot-swappable and D.D.M. functions

•RS-232Console port : 1 x RJ-45 for system configuration

•Digital Input / Relay Output port: 4-Pin removable terminal block connector

•Power input port: 4-Pin removable terminal block connector


Enclosure Port

•10/100/1000 Mbps Ethernet port:

–8 x RJ-45 (JetNet5208GP)

–6 x RJ-45 (JetNet5208GP-2F Series)

•100Mbps / 1000Mbps Fiber port :

–2 x SFP Socket (JetNet5208G-2F Series)



SFP fiber transceiver with Hot-swappable and D.D.M. functions

•RS-232Console port : 1 x RJ-45 for system configuration

•Digital Input / Relay Output port: 4-Pin removable terminal block connector

•Power input port: 4-Pin removable terminal block connector


Enclosure Port

•10/100/1000 Mbps Ethernet port:

–8 x RJ-45 (JetNet5208GP)

–6 x RJ-45 (JetNet5208GP-2F Series)

•100Mbps / 1000Mbps Fiber port :

–2 x SFP Socket (JetNet5208G-2F Series)



SFP fiber transceiver with Hot-swappable and D.D.M. functions

•RS-232Console port : 1 x RJ-45 for system configuration

•Digital Input / Relay Output port: 4-Pin removable terminal block connector

•Power input port: 4-Pin removable terminal block connector


Enclosure Port

Digital Input (Hi): DC 11V~30V

Digital Input (Low): DC 0V~10V

Supports sink type signal input with photo-coupler isolation

Relay Output

Dry Relay output: 1A / DC 24V

Supports Multiple Events Binding trigger function.

Diagnostic Indicators

•RJ-45 port: Link /Activity (Green on, Green Blinking),1000Mbps (Yellow)

•SFP port: Link/Activity (Green on, Green Blinking)

•Power: System Power ready (Green on)

•Sys: System Ready (Green on), System Updating (Green Blinking)

•DO (Alarm): Alarm Relay Active (Red On)

•R.S.: Green on (Ring normal)/Blinking (wrong ring port connective), Amber on (Ring abnormal) / Blinking (device’s ring port failed)

•PoE: Green On (PD Detect/On), Off (None-Detect/Off)

Power over Ethernet

Standard

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

PoEoperating mode

Auto Mode: IEEE802.3af/at/bt*Note

Forced Mode: User configured Power consumption budget control with IEEE 802.3 PoE /PD detection, or forced without PD detection

PoEforwarding conductor

IEEE 802.3 af/at: RJ-45: V+(3,6), V-(1,2)

IEEE 802.3 bt: RJ-45: V+(3,4,5,6), V-(1,2,7,8)

Power forwarding capability

6 PoE Port: 15W/IEEE802.3af, 30W/IEEE 802.3at (#1-6)(JetNet5208GP,JetNet5208GP-2F)

4 PoE Port: 90W/IEEE 802.3bt (#1-4) )(JetNet5208GP-U,JetNet5208GP-2F-U)

PoESystem Power Budget

Port-based system power budgetcontrol with first plug-in high priority mechanism

PoE System Power Budget: 180Watts.

Management

Telnet & Local Console Supports command line interface with Cisco-like commands and maximum 4 sessions; the telnet interface also supports SSH
SNMP Support IPv4/IPv6, v1, v2c, v3 with SNMP trap function, trap station up to 4 and can be manually configured the trap server IP address.
SNMP MIB MIBII, Bridge MIB, Ethernet-like MIB, VLAN MIB, IGMP MIB, Korenix Private MIB
Korenix Utility Supports Korenix View and Korenix NMS with IEEE 802.1AB Link Layer Discovery Protocol for device and link auto-topology discovery
Network Time Protocol Supports NTP protocol with daylight saving function and localized time sync function.
Management IP Security IP address security to prevent unauthorized access
E-mail Warning 4 receipt E-mail accounts with mail server authentication
System Log Supports both Local or remote Server withauthentication
IEEE 802.1x Port based network access control, RADIUS,MAB, TACACS+

Network Redundancy

Multiple Super Ring (MSRTM) New generation KorenixRing Redundancy Technology, Includes Rapid Super Ring, Rapid Dual Homing, TrunkRingTM, MultiRingTM, SuperChainTMand backward compatible with legacy Super RingTM.
Rapid Dual Homing (RDHTM) Multiple uplink paths to one or multiple upper switch
TrunkRingTM Integrates port aggregation function in ringpath to get higher throughput ring architecture
MultiRingTM Couple or multiple rings; Up to 4 Gigabit rings in single switch
SuperChainTM It is new ring technology with flexible and scalability, compatibility, and easy configurable. The ring includes 2 types of node Switch –Border Switch and Member Switch
ITU-T G.8032 ERPS SupportITU-T G.8032 ERPS V1 single ring topology, and ERPS V2 multiple rings with ladder topology
Rapid Spanning Tree IEEE802.1D-2004 Rapid Spanning Tree Protocol. Compatible with Legacy Spanning Tree and IEEE 802.1w multiple spanning tree
Loop Protection The Loop Protection prevents any network looping caused by RSTP and MSR ring topology change

Network Performance

Port Configuration Port link Speed, Link mode, current status and enable/disable
Port Trunk IEEE 802.3ad port aggregation and static port trunk; trunk member up to 8 ports and maximum 4 trunk groups
VLAN IEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries 3 VLAN link modes-Trunk, Hybrid and Link access
Private VLAN Direct client ports in isolated/community VLAN to promiscuous port in primary VLAN
Class of Service IEEE 802.1p class of service; per port 4 priority queues.
Traffic Prioritize Supports 4 physical queues, weighted fair queuing (W.R.R.) and Strict Priority scheme, which follows 802.1p CoS tag and IPv4 ToS/ DiffServ information to prioritize the traffic of your industrial network
IGMP Snooping IGMP Snooping v1/v2c /v3 for multicast filtering and IGMP Query mode; also support unknown multicasting process forwarding policies-drop, flooding and forward to router port
Rate Control Ingress/Egress filtering for Broadcast, Multicast, Unknown DA or All packets
Port Mirroring Online traffic monitoring on multiple selected ports
Port Security Port security to assign authorized MAC to specific port
DHCP DHCP Client, DHCP Server with IP & MAC Address binding, DHCP relay and port based DHCP server

Mechanical

Installation DIN-Rail mounting
Case Steel metal with Aluminum heat-dissipate panel housing
Ingress Protection IP41

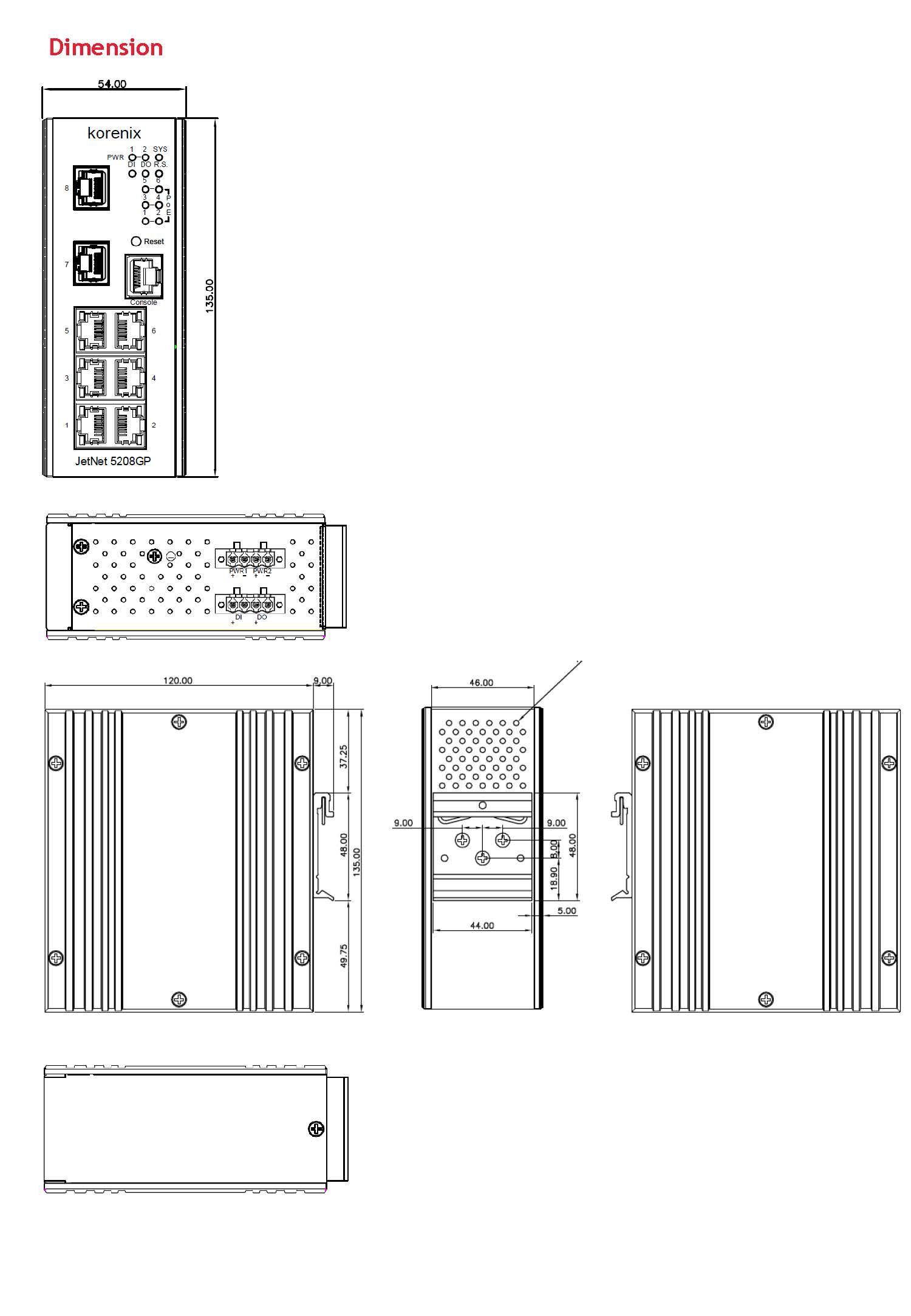

Dimension (mm) 50(W) x 120(D) x 135(H) –w/oDIN Rail Clip
Weight 0.9Kg

Power Requirement

System power 2x DC power input with polarity reverse protection
Input Range DC 48V & 50V (48-57V)
Power system type Passive power system
Power Consumption PoE af/at 180W@48V; bt180W@50V *Note

Environmental

Operating Temperature -40 ~75oC
Operating Humidity 0% ~ 95%, non-condensing
Storage Temperature -40 ~ 85oC, 0% ~90% Humidity
Hi-Pot AC 1.5KV for Ethernet port and power

Environmental

Operating Temperature -40 ~75oC
Operating Humidity 0% ~ 95%, non-condensing
Storage Temperature -40 ~ 85oC, 0% ~90% Humidity
Hi-Pot AC 1.5KV for Ethernet port and power

Regulatory Approvals

EMC IEC/EN61000-6-2, IEC/EN61000-6-4 Heavy Industrial EMC EMI:FCC Class A, CE/ Class A EMS:IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8
Railway Application EN50121-4
Power Station IEEE1613, IEC 61850-3 Compliance
Shock Compliance with IEC 60068-2-27
Vibration Compliance with IEC 60068-2-6
Free Fall Compliance with IEC 60068-2-32
Warranty 5 years

Selectin Tool

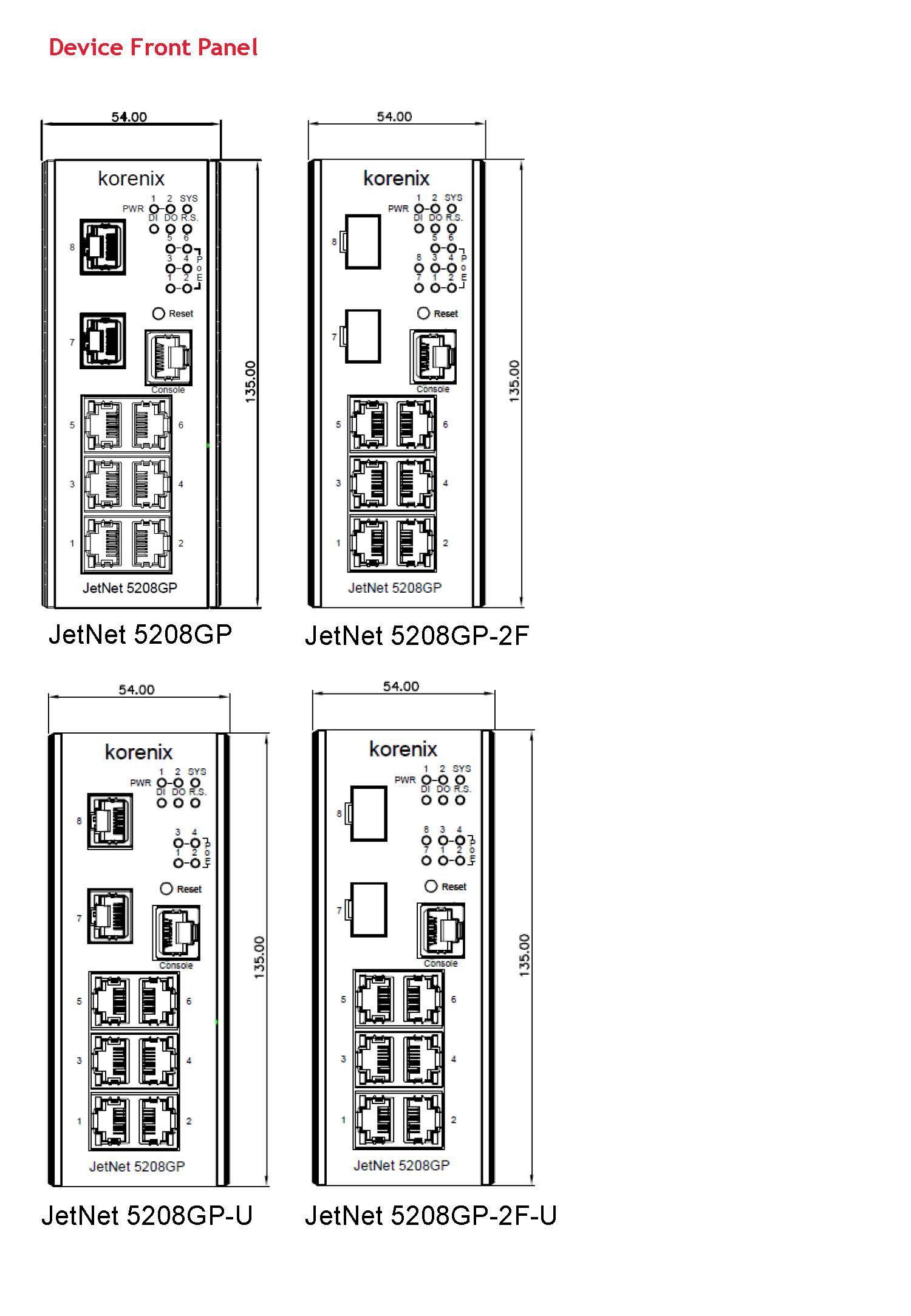

Model Name 10/100/1000 Ethernet 100/1000 Fiber PoE Port PoE Power Budget Power Input
JetNet 5208GP 8 - # 1-6 af/at 180W 46-57V
JetNet 5208GP-2F 6 2 (SFP) # 1-6 af/at 180W 46-57V
JetNet 5208GP-U 8 - # 1-4 af/at/bt 180W 50-57V
JetNet 5208GP-2F-U 6 2 (SFP) # 1-4 af/at/bt 180W 50-57V

Ordering Information

Model Name Description
JetNet 5208GP Industrial 8G RJ45 Managed PoE Switch with 180W Power Budget, -40~75oC
JetNet 5208GP-2F Industrial 6G RJ45 + 2G SFP Managed PoE Switch with 180W Power Budget, -40~75oC
JetNet 5208GP-U Industrial 8G RJ45 Managed PoE Switch with 180W Power Budget, IEEE802.3af/at/bt, -40~75oC
JetNet 5208GP-2F-U Industrial 6G RJ45 + 2G SFP Managed PoE Switch with 180W Power Budget, IEEE802.3af/at/bt, -40~75oC
Package Includes: • JetNet 5208GP Series • DIN-Rail kit • Quick Installation Guide Note: Please download User Manual from Korenix website

*Note:

  1. Please note that only the model with “U” supporting IEEE 802.3bt.
  2. The model without “U” supporting PoE function in #1~6 ports (af/at), with 180W power budget;The model with “U” supporting PoE function in#1-4 ports (bt),with 180W power budget Which needs to be decided before ordering. Kindly refer below order information for more details.

文檔

文件名稱 描述 發布日期 文件大小 下載
產品型錄 DS_JetNet5208GP_V3.0 2023/4/21 480KB Download ⇩
使用手冊 UM_CLI_JetNet5200_Series_V1.2 2022/11/22 1.27MB Download ⇩
使用手冊 JetNet5200G,6228G Software User Manual V1.0 2023/04/06 3.6MB Download ⇩
CE CE_JetNet5208 2021/2/9 208.96KB Download ⇩
FCC FCC_JetNet5208 2021/2/9 202.82KB Download ⇩
EN50121-4 EN50121-4_JetNet5208 2021/2/9 206.87KB Download ⇩
2D Drawing_pdf 2D_JetNet5208GP_pdf 2022/12/29 185KB Download ⇩
2D Drawing_dwg 2D_JetNet5208GP_dwg 2022/12/29 188KB Download ⇩
3D Drawing_pdf 3D_JetNet5208GP(at-af)_pdf 2023/01/30 2MB Download ⇩
3D Drawing_step 3D_JetNet5208GP(at-af)_step 2023/01/30 4.8MB Download ⇩

韌體

文件名稱 描述 發布日期 文件大小 下载
Firmware JETNET5208GP-v1.99.0 2023/04/06 8.6MB Download ⇩
Firmware FW_JetNet5200-V2.0.0_23022120 2023/04/06 9MB Download ⇩
Upgrade Procedure JetNet 5200G series FW v2.0.0 upgrade procedure 2023/04/06 338KB Download ⇩
Last Minute Notes JetNet 5200G series FW v2.0.0 Last Minute Notes 2023/04/06 143KB Download ⇩
Firmware FW_JetNet5200-V2.1.0_23060520 2023/06/20 9MB Download ⇩
Release Notes JetNet 5200G series FW v2.1.0 Release notes 2023/06/20 166KB Download ⇩
Last Minute Notes JetNet 5200G series FW v2.1.0 Last Minute Notes 2023/06/20 129KB Download ⇩

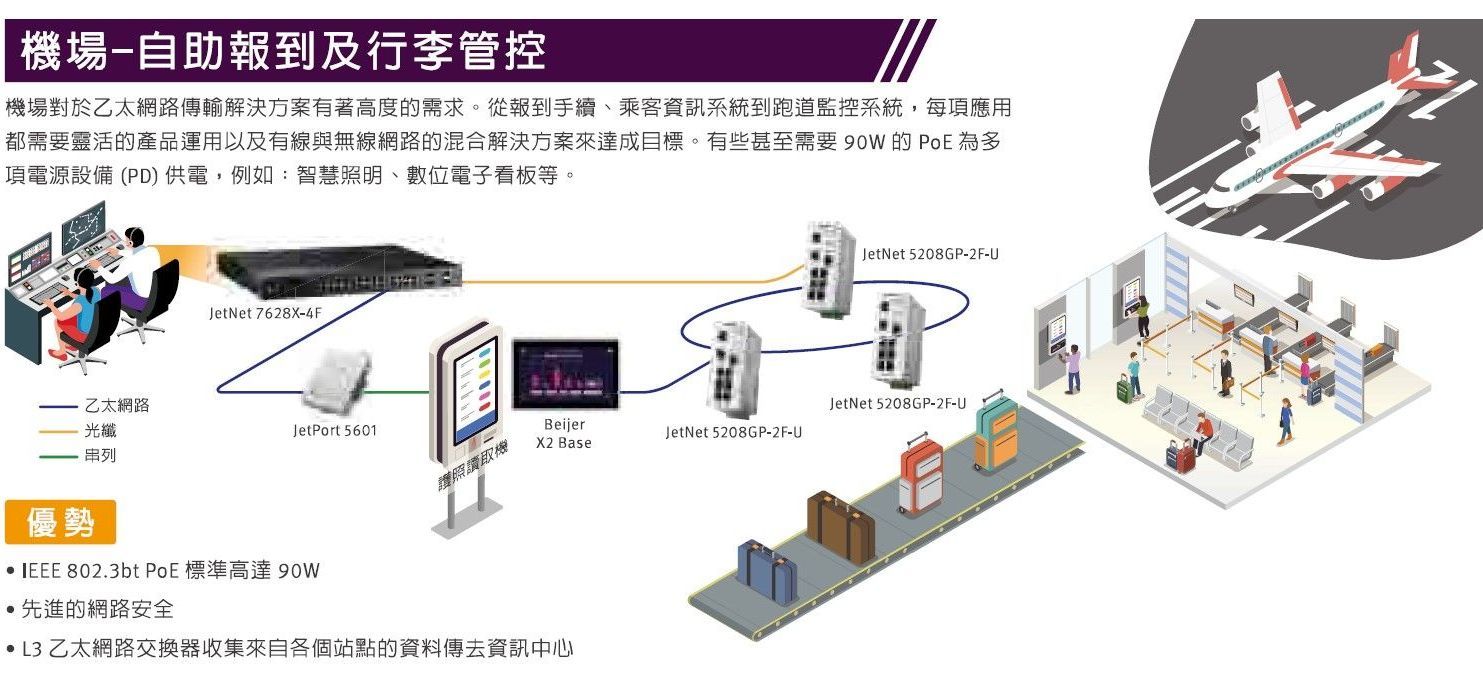

應用
