Hardware Interfaces

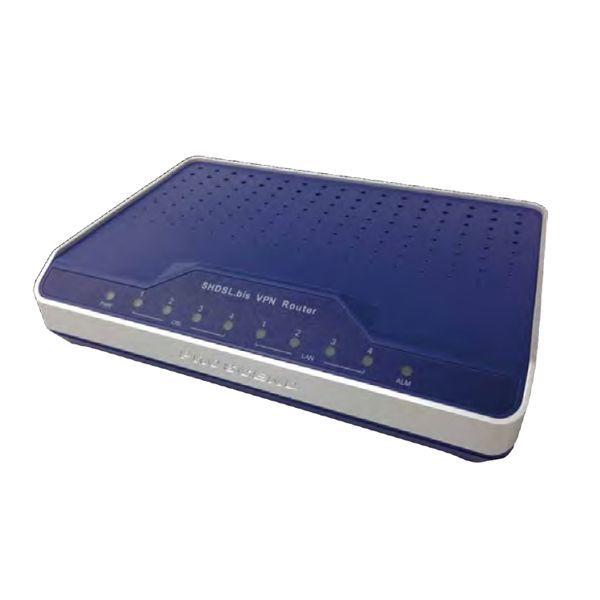

SiPRO 6200 series G.SHDSL.bis EFM/ATM VPN Router
WAN Interface:
• SHDSL.bis: ITU-T G.991.2 (2004) Annex A/B/F/G
supported
• Support EFM Bonding and SHDSL M-Pair mode
• Line Code: TC-PAM 16/32/64/128
• Data Rate:
N x 64 Kpbs (N=3~89) using TC-PAM 16/32
Max. 5.696Mbps (1-Pair) Max.
11.392Mbps (2-Pair)
Max. 22.784Mbps (4-Pair)
N x 64 Kbps (N=3~239) using TC-PAM 64/128
Max.15.296 Mbps (1-Pair)
Max.30.592 Mbps (2-Pair)
Max.61.184 Mbps (4-Pair)
• Impedance: 135 ohms
LAN Interface:
• 4-Ports 10/100M Switch, Auto-negotiation for 10/100Base-TX and Half/Full Duplex,Auto-MDIX
Serial Console:
• RJ-45 Connector
Factory Default Reset:
• Push Button
LED:
• Power (Green)
• WAN: LINK/ACT (Green), one LED per pair
• LAN (Port 1 ~ Port 4): LINK/ACT (Green:100M,
Orange:10M)
• ALARM (Red)
Bridging and VLAN
• IEEE 802.1D Transparent Learning Bridge
• IEEE 802.1Q and Port Based VLAN
• Spanning Tree Protocol (STP)
• Up to 2K Mac Address
Routing
• Static routing and RIPv1/v2(RFC
1058/2453)
• NAT/PAT (RFC 1631)
• NAT Application Level Gateways
• Skype/MSN/Yahoo Messenger(RF
2933)
• VoIP(SIP) pass through andVPN
PPTP/L2TP pass through
• Virtual Server
Network Protocol
• IPv4 (ARP/RARP, TCP/UDP,ICMP)
• DHCP Client/Server, Relay
• DNS Relay/Proxy, DynamicDNS
(DDNS)
• IGMP v1/v2, IGMP Proxy, IGMP
Snooping
• SNTP and UPnP
ATM
• 12 PVC
• OAM F4/F5 Loopback
• AAL5
• VC Multiplexing and SNAP/LLC
• EoA (RFC 2684/RFC 1483), PPPoA
(RFC 2364) and IPoA (RFC1577)
• Multiple protocol over ATM AAL5
(MPOA, REF 1483/2684)
• QoS(UBR/CBR/VBR/VBR-RT)
PPP
• PPPoE
• PAP/CHAP/MS-CHAP/MS-CHAPv2
• Configurable timer to auto-reconnect and
idle times for timeout
QoS
• 802.1P Tag
• IPv4 TOS/DiffServ
• Class-basedPrioritization and
Class-based TrafficShaping
• Class-based DSCP Mark
• Up to 8 priority queues
VPN
• IPSec (RFC 2411) up to 12 Tunnels
• DES/3DES/AES
• MD5/SHA-1 and IKE/Manual Key
• ISAKMP (RFC 2407/2408/4306) and
IKE v1 (RFC 2409/4109)
• PSK
• L2 TP/PPTP
Firewall
• SPI (Stateful Packet lnspection) and
DoS (Denial of Service)
• DMZ
• Access Control List (ACL)
Management
• Management via Web, Telnet and CLI
• Support SSH
(RFC425O/4251/4252/4253/4254/4255/4256)
• SNMP v1/v2c/v3 (RFC 1157/1901/1905) and
MIB II (RFC 1213/1493)
• Syslog with Remote Logging support
• Firmware Upgrade via TFTP
• EFM Oam (IEEE 802.3ah optional)
• Ethernet Oam (802.3ag optional)
Operating Environment
• Operating Temperature: O~45°C
• Storage Temperature: -20 °C~7O°C
• Operating Humidity: 2O%~95% (non-condensing)
Regulatory
• ISO 9001 Quality Management
• CE Approval & EN60950 Certificate
Physical / Electrical
• Dimensions: 18.7 x 3.3 x 14.5cm (WxHxD)
• Power: 100~240VAC (via power adapter)
• Power Consumption: 9 watts Max.
Maximum DSL
wires 2-wires
Maximum data rate
5.69 Mbps (TC-PAM 16/32)
15.296 Mbps (TC-PAM 64/128)
